Product showcase

Adjustable Concealed Hinge (Surface Mount)

A quick introducing of our stainless steel folding brackets with soft-closing damper, EB-303/EP-D. High Capacity bracket suitable for outdoor application.

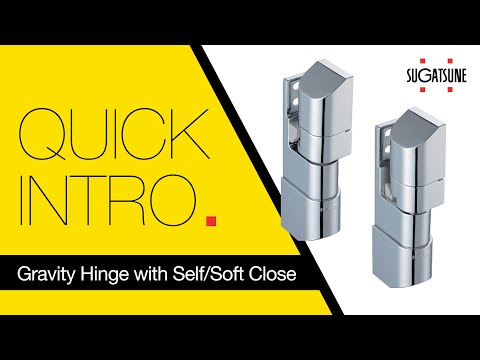

The newest addition to our Motion Design Tec (MDT) family, the HG-JG150, Gravity Hinge with Soft/Self Close. It combines functionality and Beauty with a sleek chrome finish and adjustable closing speed. It also features mounting adjustability to make sure it is perfectly in place.

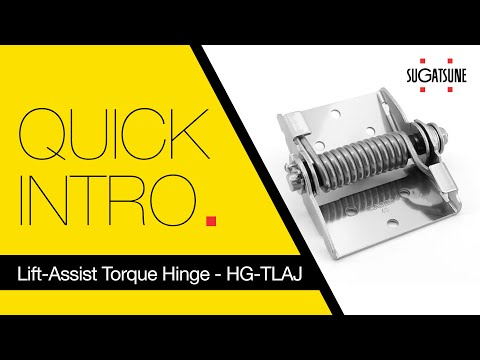

A new addition to our Motion Design Tec (MDT) family, the HG-TLAJ, Lift-assist torque hinge. It combines the convenience of making the lid lighter and the free stop feature of a torque hinge . It also features torque adjustability to make sure it is perfectly supports the lid.

An introduction to three stainless steel, heat resistant torque hinges HG-TBS, HG-TBSJ and HG-ITHP. with various torque strengths, heat resistant and 40,000 open/close cycle testing. These hinges are ideal for applications in food preparation equipment, lab testing, dry chambers or any high humidity/temperature environment.

A quick view at our Stainless Steel multi-purpose lids with soft close features. Available in countertop and vertical applications, round and rectangular as well as various sizes.

A quick view of our CHC-S Split Cable Grommet, When a discrete cable grommet is necessary to maintain the elegance of your electronics. Available in four finishes and 3 sizes.

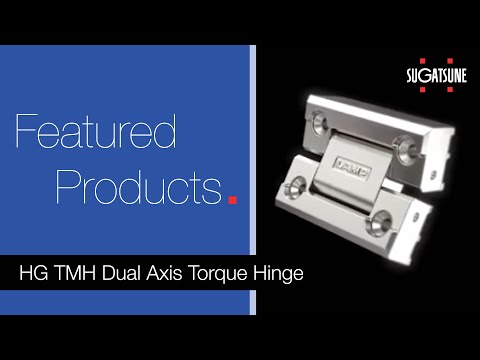

Watch our HG-TMH dual torque hinge in action.

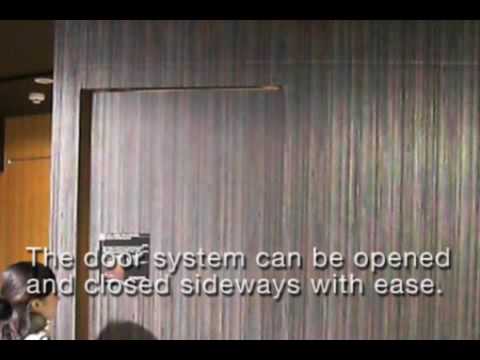

A unique movement, Flush Sliding Door System, featuring dual damper that soft opens and soft closes the door, Minimal parts, with excellent performance. Designed to CLOSE FLUSH against surrounding walls, providing clean appearance. A UNIQUE MOVEMENT: Door moves in first, and then slides sideways. CLEAN APPEARANCE: No bottom rails on floor required on this unique MFU-System.

Introducing our Split Cable Grommet with Lit (LS50S-S), It comes with a removable lid to fit most wires, made of zinc alloy and available in three stylish finishes. Can be split into two parts for easy cable replacement. Even when exchanging with cables which have bigger plugs than the grommet, there is no need to take them apart. The lid is equipped with rubbers on the back side to prevent it from coming off unintentionally.

Inset pocket door system with various size options.
- Hardware available in 4 configurations (S, M, L and LL).
- Sliding system allows doors to retract inside cabinets.
- Side mounted slides provide smooth door motion.
- The slides hold doors in position when they slide out of cabinets. This prevents doors from sagging.
- Has easier hinge position adjustment than previous model.
- 2 types are available: “with catch” and “with damper” types.

The versatile and surprisingly strong ML-ZN80, a Push-to Open Door Latch that surpasses all expectations, featuring a strong 11 lbs push force, ideal for large doors, and it features a magnet that allows tolerance with 1.5° swivel. The hidden mounting screw design offers a clean appearance and easy installation. The only Push-To-Open Door Latch of this category, available in the market.

The newest addition to our LIN-X Lateral Door Opening Systems. The LIN-X800, featuring soft close and hold up to 88 lbs. door.

Our Aileron Lift-Assist Lid Stay System, features 5-speed adjustable soft close and adjustable lift-assist with free stop, making this the most versatile system in the market, requiring minimal hardware and easy installation.

Aesthetics meets functionality with the OV system, Soft Closing Mechanism for Over-The-Top Flipper Doors. These systems features adjustable closing speed and patented Lapcon technology that offers a quiet motion and avoids lids/doors from slamming.

A quick view at our SLUN and SLD Vertical Swinging Mechanisms. Designed with a unique upward or downward swinging mechanisms the SLD and SLUN systems feature a sleek and compact design that provide maximum access to your cabinets. They also features easy installation, full adjustability and Lapcon Design for smooth movements.

A sneak view at our Lateral Opening Door System for cabinets, the LIN-X600. Featuring a smooth lateral motion requiring less clearance for any door, 4-way adjustability and soft close mechanism. Also available for larger cabinet doors (LIN-X800) and smaller doors (LIN-X450).

An introduction of our stainless steel, ultra thin magnetic catch with back mount, the MC-159-ST and other magnetic catches part of our ultra thin series. we also showcase some of our sealed magnetic catches.

Available in two sizes and three finishes, this cable grommet is the perfect solution for sheet metal applications, installs with just one snap and can easily be closed or opened.

A versatile and elegant system that allows for upward-opening cabinets to pocket away as it opens, featuring adjustable soft-close. This system passes 30,000 open/close private cycle test.

A unique movement, Flush Sliding Door System, featuring dual damper that soft opens and soft closes the door, Minimal parts, with excellent performance. Designed to CLOSE FLUSH against surrounding walls, providing clean appearance. A UNIQUE MOVEMENT: Door moves in first, and then slides sideways. CLEAN APPEARANCE: No bottom rails on floor required on this unique MFU-System.

An introduction of our concealed type adjustable (speed) soft-close hinge with self-close function for vertical use.

A solution to doors and surfaces that should not slam, this hinge will reverse torque direction after 90°. Ideal for medical equipment, factory and office automation equipment.

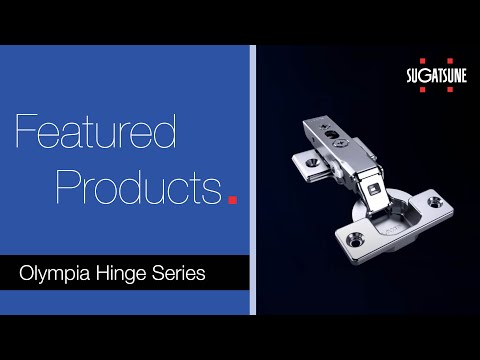

The hinge we’ve all been waiting for. Our Olympia Concealed Cup Hinge features an adjustable 5-speed soft close damper with 3-way adjustability and all the quality you expect from Sugatsune. Take a look and feel free to contact your local sales rep. with questions.

A quick introduction to our Lever Release for the EB Bracket Series. This system can make the EB Brackets operable with just one hand. It can be used for long surfaces and in 2 or 3 bracket configuration.

A quick introduction to the 388 Folding Bracket Series, with load capacity ranging from 77 lbs to 176 lbs. and available in anodized and black finishes

The seriously heavy-duty concealed cup hinge, the J95 Hinge series is your solution to minimize the use of concealed hinges. holding up to 55 lbs for 2 hinges and 88 lbs for 3 hinges.

Here is an amazing system that makes heavy counters easy to lift, stops open & holds at 95°, features a slim design and adjustable soft-close mechanism.
The LADH- System comes in two strengths to meet your needs.

HG TQJ100, One-Way Adjustable Torque Hinge. A versatile hinge that can be adjusted to a wide torque range. Available in opening torque motion and closing torque motion.

A quick view at the the HG-PA Power Assist Hinge Series, a versatile hinge with adjustable torque, lift assist and soft-close features. Available in 17 models between side and top mount both in interior and exterior applications in a torque range of 79 ~459 lbs•in.

A quick look at our EB Lever Release for EB Series Folding Brackets, a simple but extremely helpful design. This EB-Lever Release is perfect for long surfaces and it is available for 2 and 3 bracket configurations.

An introduction of our adjustable soft-close hinge with self-close function, available in back and white.
More information:
Click Here
#whendetailsmatter #softclose #industrialhardware #hardware

A quick introduction of our angle adjustable detent hinge (HG-CHJ70) with three adjustable opening angles, in addition, to close (-3º) and fully open (177º). Available in black and white.

A quick introduction of our Large Stainless Steel Handles, SLH Series. With a clean, modern and ergonomic design the SLH Handles are a great solution for your architectural and industrial applications. Available in three sizes.

A quick view at our Dual Axis Torque Hinge, HG-T30S15. Made with quality stainless steel, it has all you need in a multi-movement hinge in one piece.

The awaited Concealed Hinge for Thick Cladding, our HES3D W190 model, comes in different finishes for a nice aesthetic look and feel. with a remarkable 3 hours UL rating, 3 way adjustment, cover caps and lift-off features that make installation easier and provides a perfect fit.

Introducing the latest addition to our our extremely versatile Stainless Steel Tension Catch family, now with adjustable tension and easy to align strike. Perfect for exterior application and marine industry.

A brief introduction to our S-ATJ Balance Adjustable Spring Loaded Lid Stay with damper option. A lid stay that balances different lid shapes while providing lift-assist and soft close (optional).

A brief introduction to our Stainless Steel Hooks. With hundreds of styles and sizes to chose from we are sure to have the stainless steel hook you need, from utility to latch hooks, small and large hooks, we have a wide selection of stainless steel hooks to fit your design. Sugatsune also features a selection of NSF (National Sanitation Foundation) compliant hooks in 304, and 316 grade stainless steel. Sugatsune offers many products that feature high load capacities, highdurability and precision; making them the ideal hardware manufacturer to source stainless steel as well as high-cycle tested hardware.

MFU equipped door moves in, slides sideways, and closes “Flush”

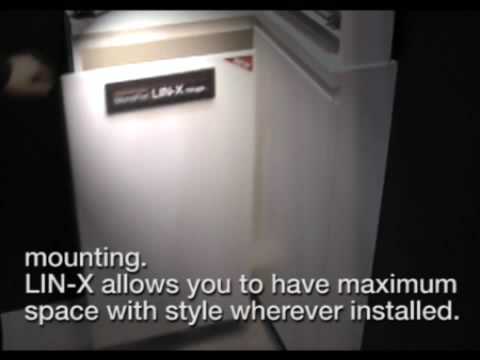

LIN-X allows doors to swing out laterally in a small radius,ideal for tight front space application

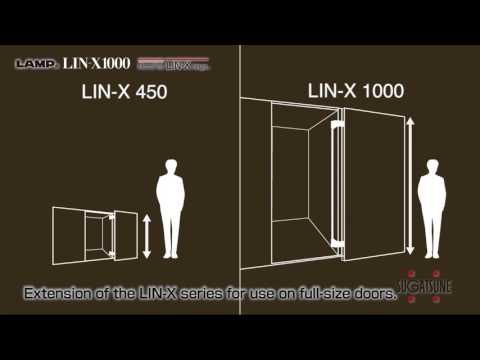

Sugatsune’s LIN-X1000 Lateral Door Opening System is designed to provide smooth movement with a soft-close feature that operates on large doors weighing up to 200-lbs. Providing 4-way adjustability to ensure a flush, clean look when closed, the LIN-X-1000 allows doors up to 43 5/16” wide to swing open in a small radius making it a great application for custom pantry doors, storage rooms or other applications where space may be a constraint.
