Installation Guide for the New ALT-ST Pocket Door System Installation Guide for the New ALT-ST Pocket Door System

Welcome to Sugatsune’s workshop! In this installation guide, our Technical Support Representative, Matt, will provide step-by-step instructions on installing the innovative ALT-ST Pocket Door System. Matt will also explain the system’s unique 5-level multi-level adjustment feature, which ensures that your cabinet doors remain perfectly aligned and prevent sagging. To learn more about the ALT-ST Pocket Door System and its features, please visit the links below.

ALT-ST20-D360 POCKET DOOR SYSTEM (INSET) https://www.sugatsune.com/product/pocket-door-system-4/

ALT-ST15-D360 POCKET DOOR SYSTEM (INSET) https://www.sugatsune.com/product/pocket-door-system-2/

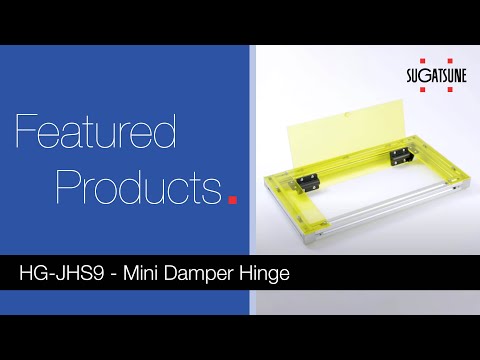

HG-JHS9 Mini Damper Hinge HG-JHS9 Mini Damper Hinge
  • Hinge with built-in damper to keep lid from slamming shut.
  • Surface mount type. No need to mortise on the door.
  • There are 2 types of damper brackets up to the application.
  • S type: Side mounted
  • U type: Rear mounted
  • Ideal for small covers of desktop sockets, machinery and equipment
EB Folding Brackets EB Folding Brackets

Installation of EB-303/EP folding shelf brackets. A high load capacity, stainless steel folding bracket that is easy to install and very versatile.

Lateral Door System LIN-X1000 Lateral Door System LIN-X1000

Highlight your craftsmanship and transform your ordinary door opening motion into an elegant experience with the award winning, LIN-X1000 lateral opening system. Sugatsune America’s halo product features a unique, space saving system designed to move larger doors up to 200 pounds with minimal effort.

The installation in this video is being completed on a framed overlay door. Please contact us for inset door installations.
When marking measurements, use of painter’s/masking tape is recommended.

For more information on the LIN-X1000 please visit: https://www.sugatsune.com/product-category/products/door-systems-and-hardware/lateral-opening-door-hardware/
